Description

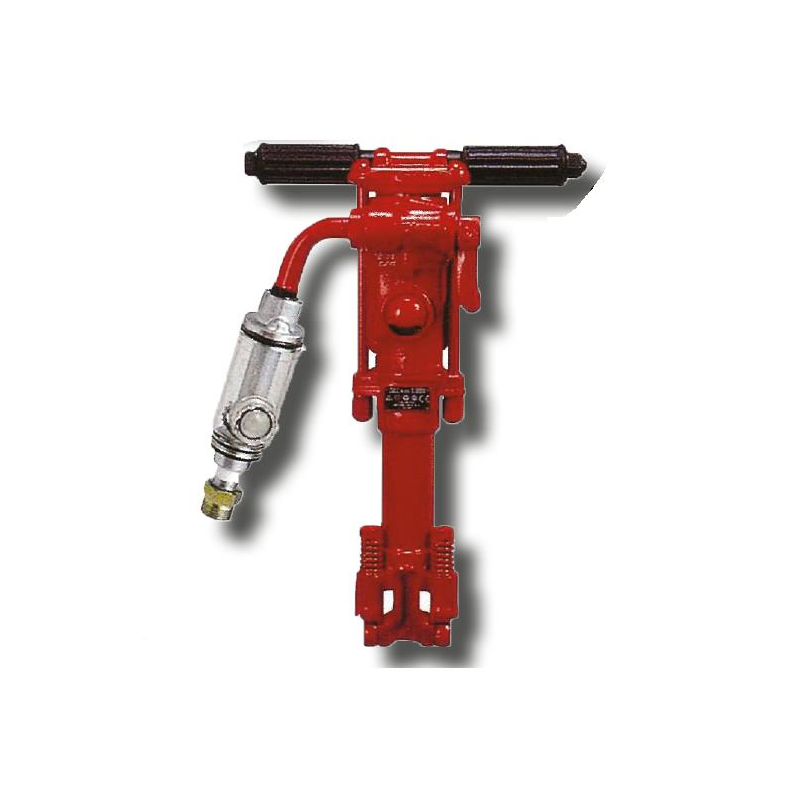

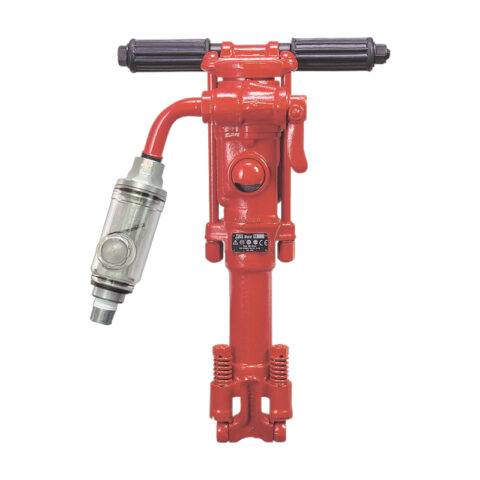

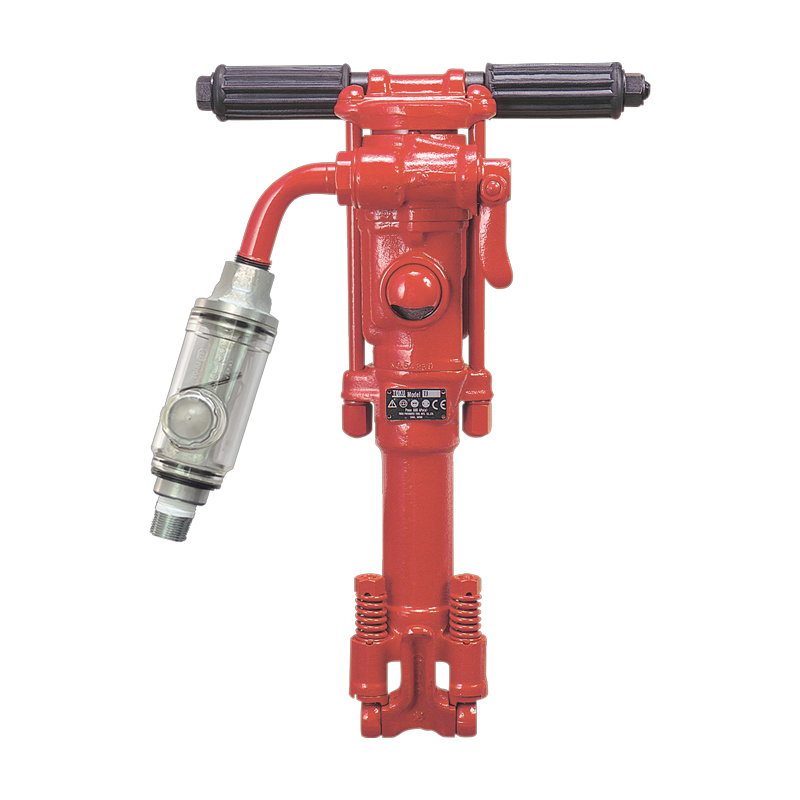

The Tamco/Toku TJ-15 is a 30 lb-class pneumatic sinker rock drill from Toku's rock-drill line, used for pedestal-style downward-hole drilling, anchor-bolt holes, foundation-pin work, and small-diameter blast-hole drilling. Key specs include 2,450 BPM impact rate, 56 CFM at 90 PSI. Quarry, foundation, and construction crews specify the Tamco/Toku TJ-15 for the Toku parts pipeline and field-service support.
- 30 lb-class sinker-configured pneumatic rock drill from Toku's rock-drill line, built for sustained downward-hole pedestal drilling.
- Rated 2,450 BPM, 31 lb tool weight, 18-1/2 in. overall length for balanced impact across production drilling and rock-bolting work.
- Consumes 56 CFM at 90 PSI, runs on standard contractor compressor circuits.
- A 100-CFM compressor supports single-tool operation; larger 185-CFM and 375-CFM units run multiple drills on the same circuit.
- Percussion-plus-rotation pneumatic motor with 1-1/8 in. piston bore by 1-3/4 in. stroke for high impact-per-blow energy through the drill chuck.
- Built for anchor-bolt drilling, foundation-pin holes, secondary rock breaking, and small-diameter production blast-hole drilling on quarry benches.
- Quarry, foundation, and construction crews specify it for pedestal-style downward drilling where operator weight feeds the bit into the rock.
- Crowder Supply stocks drill steels, bits, replacement chucks, pistons, and seal kits for the Tamco/Toku TJ-15 platform.
- Toku (Tamco/Toku) is a long-established Japanese pneumatic-tool manufacturer with a deep export catalog of industrial rock-drilling and demolition tools.
